  • Compact substation

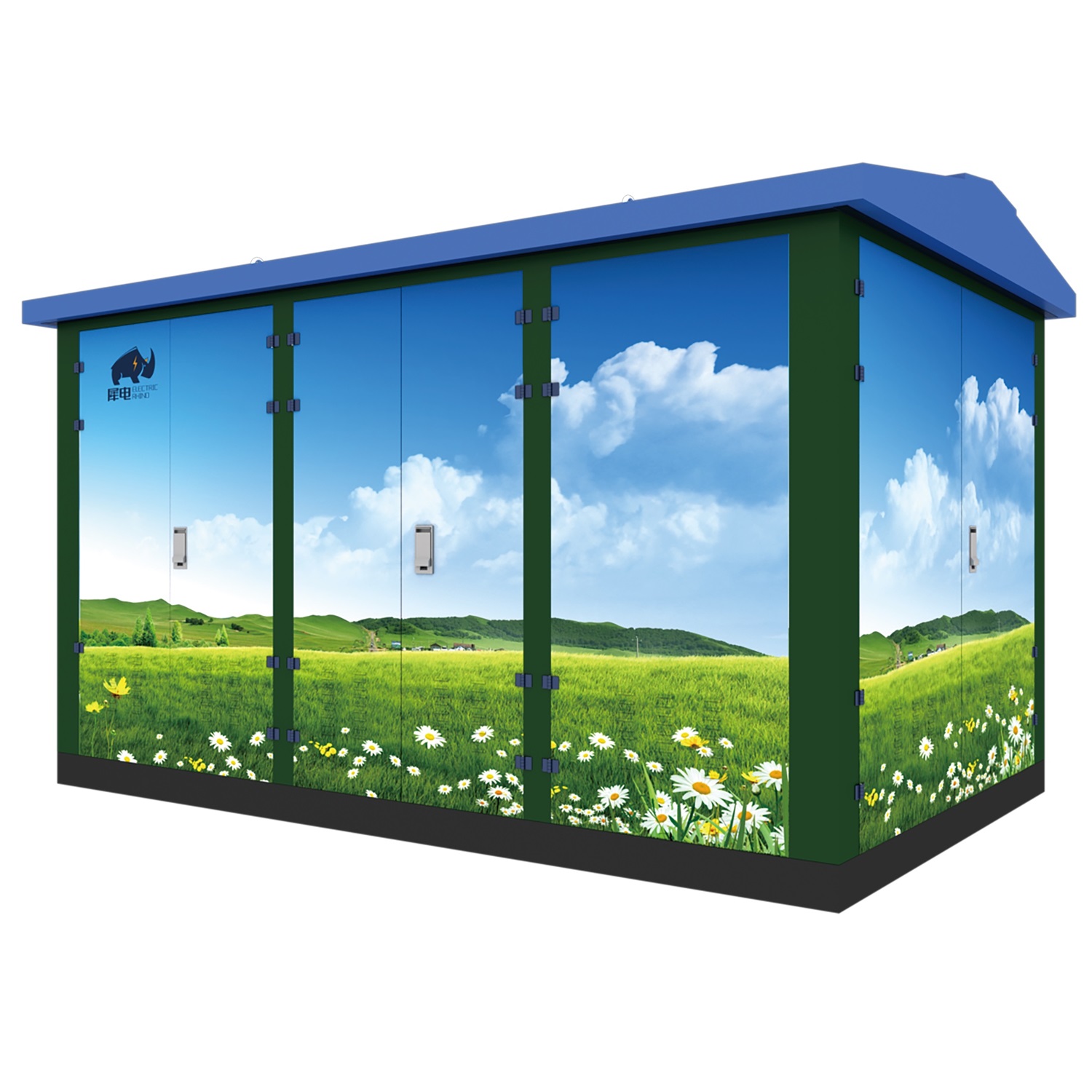

    Landscape box-type substation is an innovative product that integrates traditional box-type substation with the surrounding environment. It is a modern power facility that integrates transformers, distribution equipment, control equipment and other auxiliary equipment in a closed box. Through appearance design, material selection and greening integration, it reduces the visual impact on the surrounding landscape. It is widely used in urban parks, residential areas, commercial blocks, tourist attractions and other places with high requirements for aesthetics.

  • Description
  • Technical specification

1. Integration of beauty and environment

Appearance design: landscape design is adopted to coordinate with the surrounding environment.

2. Modular design

Compact structure and easy expansion: modular design is adopted, with small footprint and flexible installation, suitable for areas with limited space. The capacity and function can be flexibly adjusted according to needs to meet the power demand of different scenarios.

3. Environmental protection and energy saving

Low noise: noise reduction technology is adopted, and the noise is low during operation, which is suitable for areas sensitive to noise.

Energy saving and high efficiency: high-efficiency transformers and energy-saving equipment are selected to reduce energy consumption, which is in line with the concept of green environmental protection.

4. Intelligent management

Remote monitoring: equipped with intelligent monitoring system, which can monitor the operation status in real time, realize remote control and fault diagnosis. Support automated operation, reduce manual intervention, and improve operation efficiency.

5. Safe and reliable

Fireproof and explosion-proof: flame retardant materials and explosion-proof design are used to ensure safe operation.

High protection level: with a high protection level (such as IP54 and above), it can withstand severe weather and environmental conditions.

Anti-theft design: the shell is sturdy and equipped with anti-theft locks to prevent the equipment from being damaged or stolen.

6. Easy installation and maintenance

Quick installation: prefabricated in the factory, simple on-site installation, shortening the construction period.

Easy maintenance: reasonable layout of internal equipment, easy to repair and maintain, reducing operation and maintenance costs.

7. Economical

Low overall cost: Although the initial investment is high, the long-term use cost is low due to its energy-saving, low maintenance and long life characteristics.

Rated voltage12
Rated current630
SizeCustomized
Place of OriginTianjin,China
Brand NameKechang Electric
Model NumberKC-Substation
MaterialGRC/Metal/Non-metallic/Composite shell
Product NamePrefabricated Substation
Input Voltage10KV, 15KV, 20KV,35KV
Output Voltage440V
General StructureHV Switchgear/Transformer/LV Switchgear
Transformer TypeOil Filled Transformer/Dry Type Transformer
Frequency50/60Hz
PhaseThree
Coil StructureTOROIDAL
Coil NumberAUTOTRANSFORMER
PackageStandard Wooden Case
