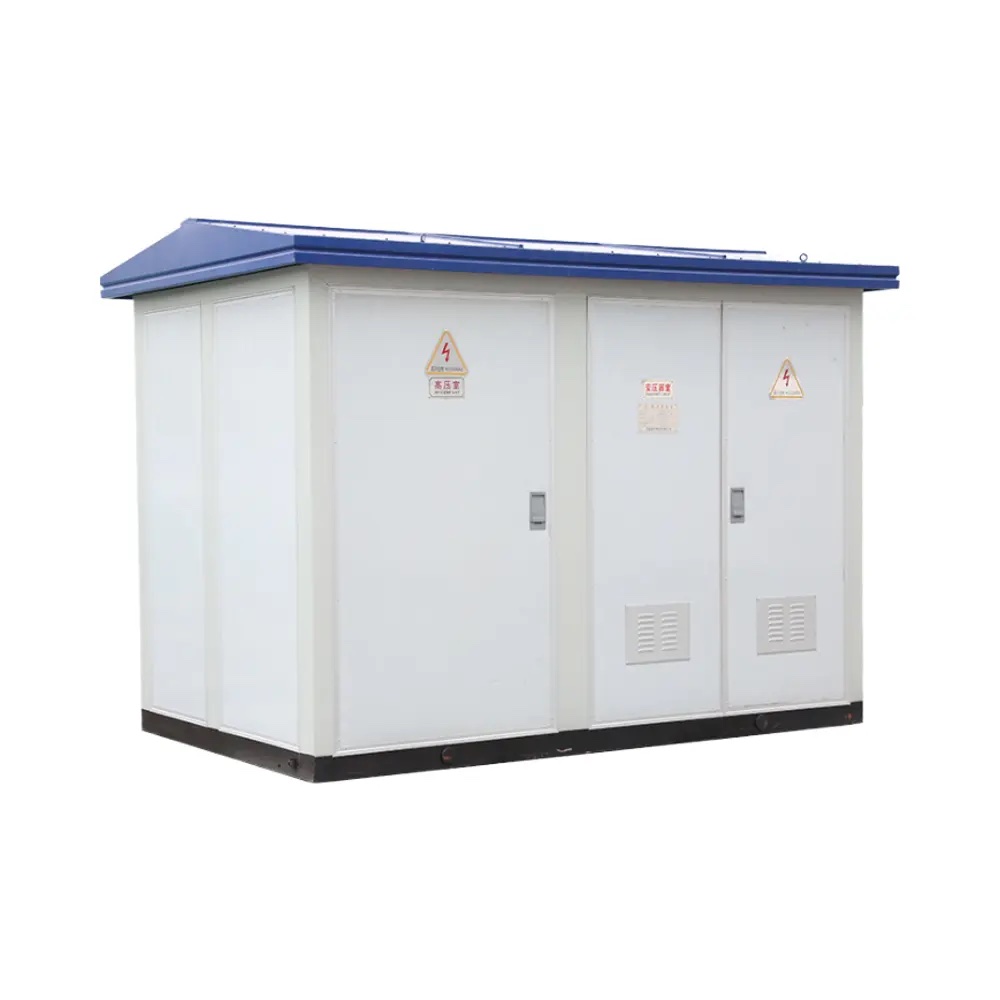

Metal shell pre-installed box type substation

Compact substation
Metal casing pre-assembled box-type substation is a kind of factory prefabricated indoor and outdoor compact power distribution equipment which combines high-voltage switchgear, distribution transformers and low-voltage distribution devices into one according to a certain wiring scheme and is installed in a metal casing.

Compact structure, small footprint: multiple electrical equipment integrated in a metal enclosure, greatly reducing the footprint of the equipment, suitable for urban power grids, small and medium-sized factories, commercial complexes and other places with tight land use.
Convenient installation and short construction cycle: most of the equipment is pre-assembled in the factory, and only simple installation and commissioning work is required on site, which can effectively shorten the construction cycle and save time and labor costs.
Simple operation and maintenance: the structure of the equipment is relatively simple, easy to operate, and due to the use of standardized design and manufacturing, easy to carry out routine operation and maintenance and overhaul work, reducing maintenance costs.
High reliability: the various components of the pre-assembled substation have gone through strict quality inspection and testing, and the equipment has a high level of protection, can adapt to a variety of harsh natural environments and operating conditions, has a high degree of reliability and stability.
Good safety: the metal shell has good closure and grounding performance, which can effectively prevent personnel misuse and electric shock accidents, but also avoid the equipment from external factors that may cause safety accidents.

Rated voltage	12
Rated current	630
Size	Customized
Place of Origin	Tianjin,China
Brand Name	Kechang Electric
Model Number	KC-Substation
Material	GRC/Metal/Non-metallic/Composite shell
Product Name	Prefabricated Substation
Input Voltage	6kv, 10kv, 35kv, 15kv, 20kV
Output Voltage	440V
General Structure	HV Switchgear/Transformer/LV Switchgear
Transformer Type	Oil Filled Transformer/Dry Type Transformer
Frequency	50/60Hz
Phase	Three
Coil Structure	TOROIDAL
Coil Number	AUTOTRANSFORMER
Package	Standard Wooden Case
