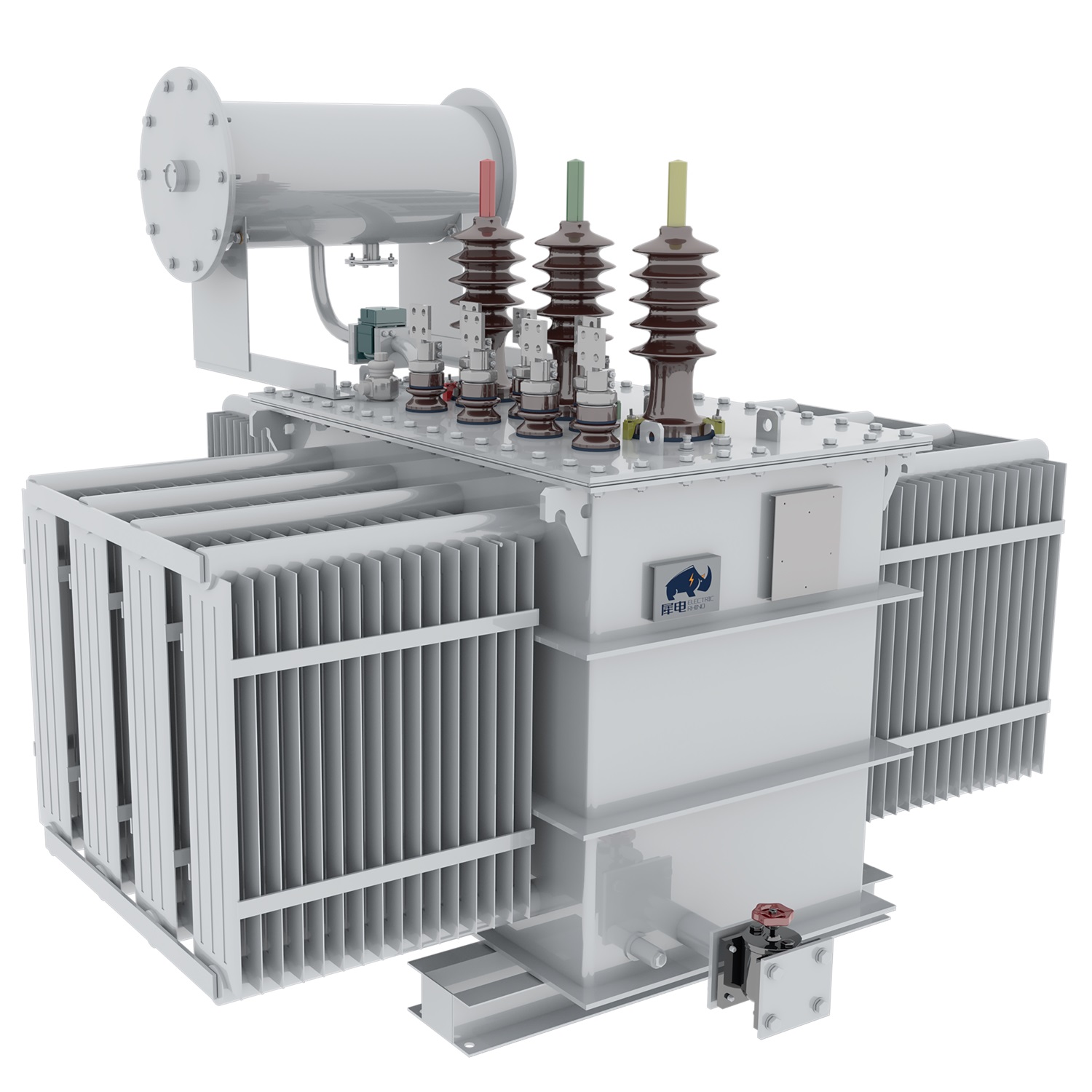

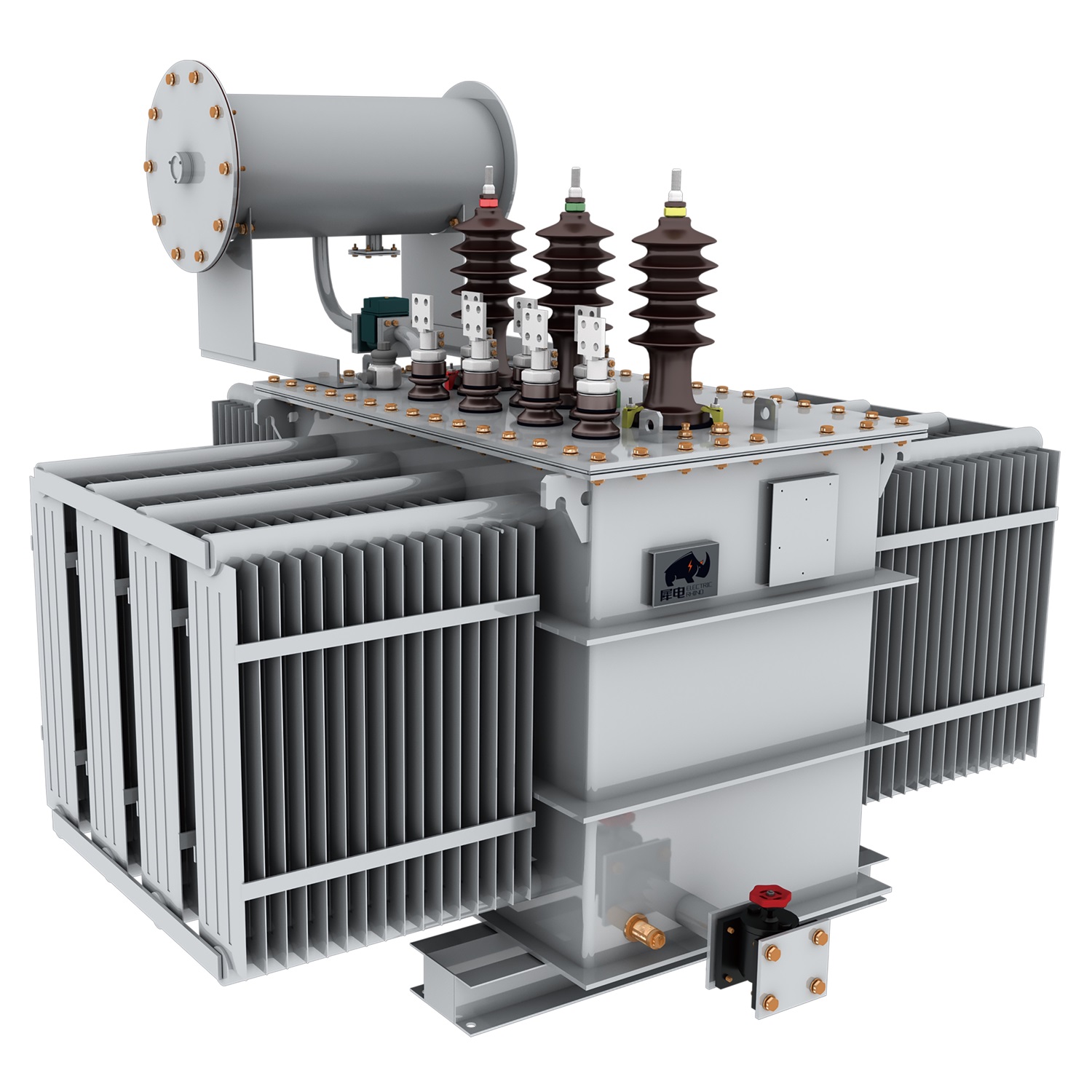

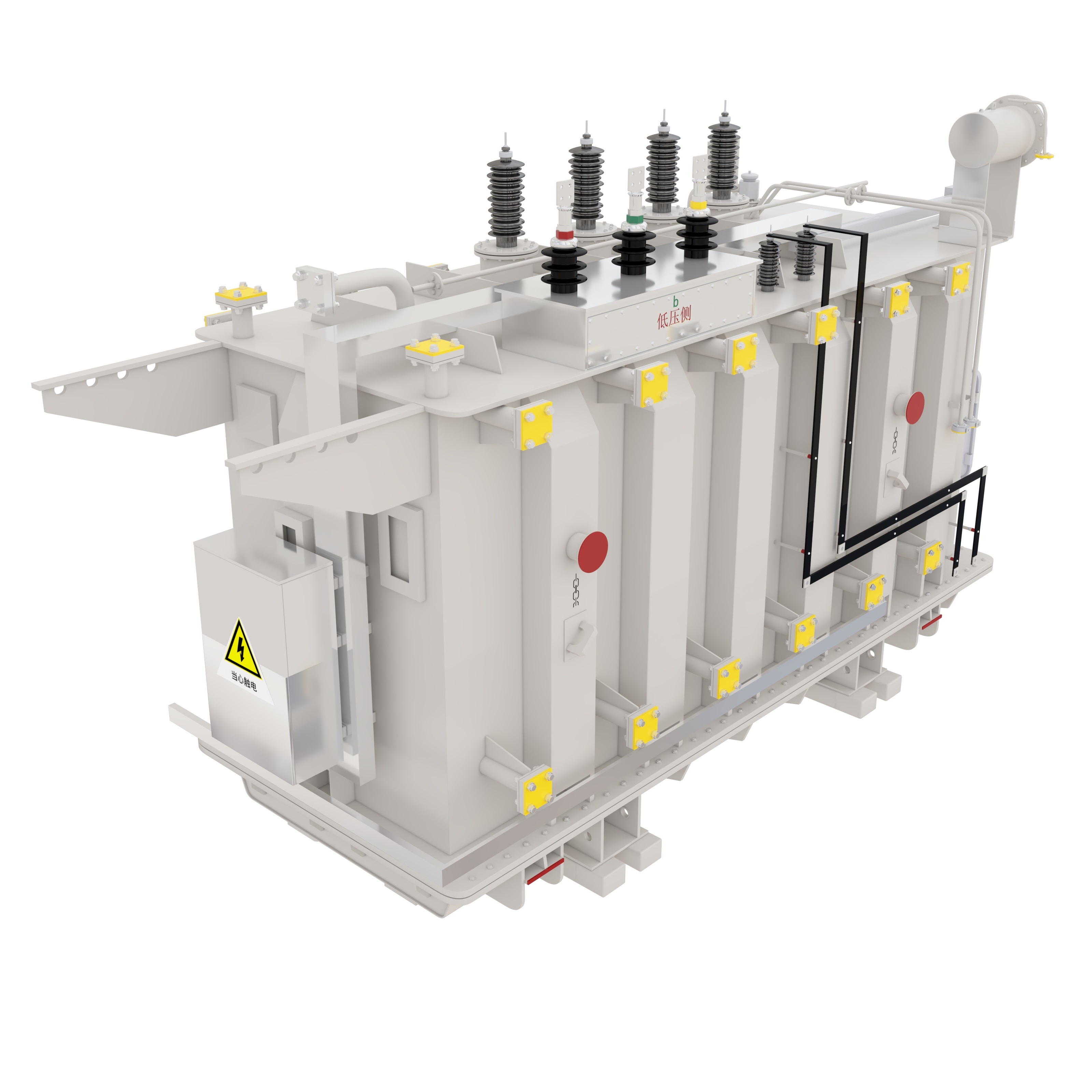

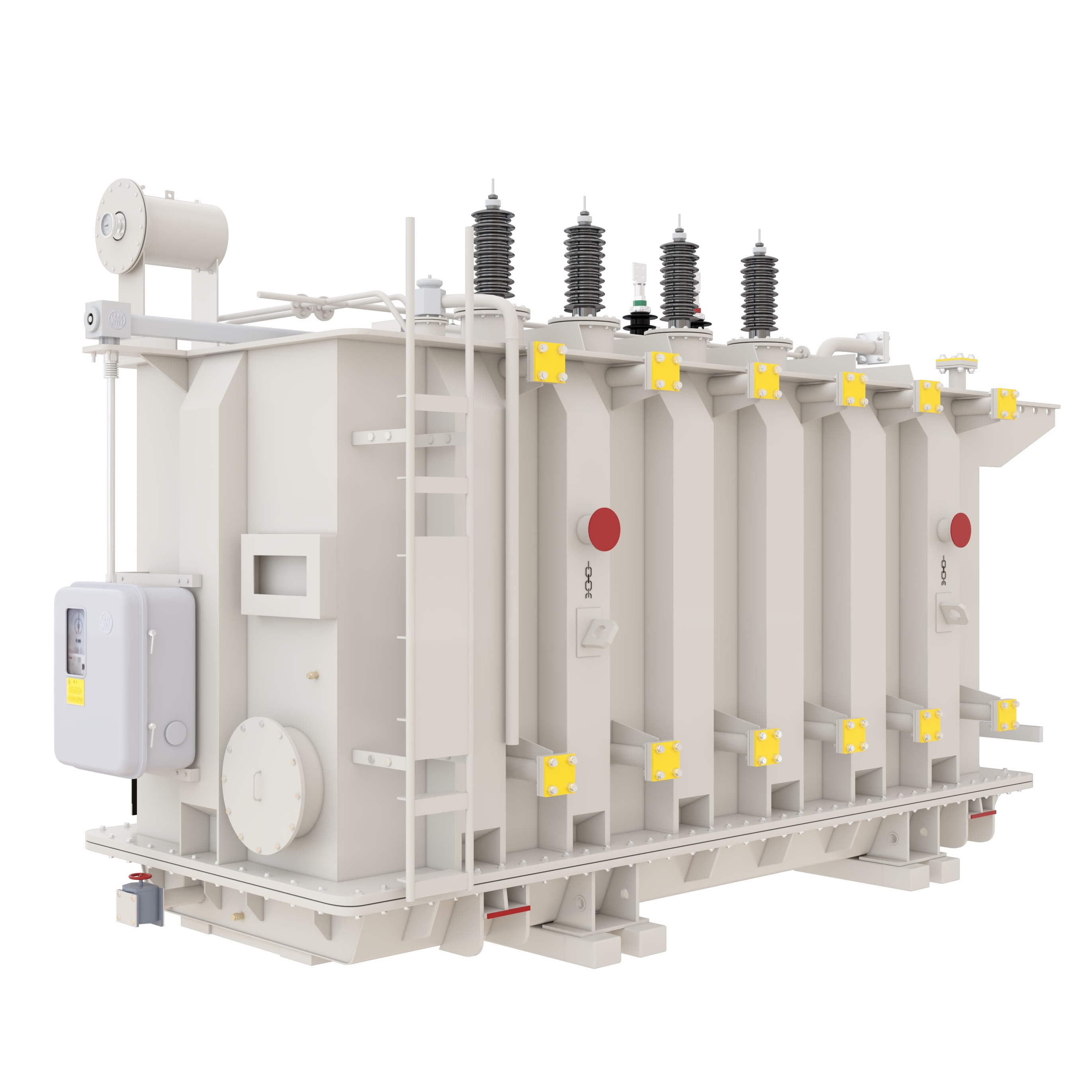

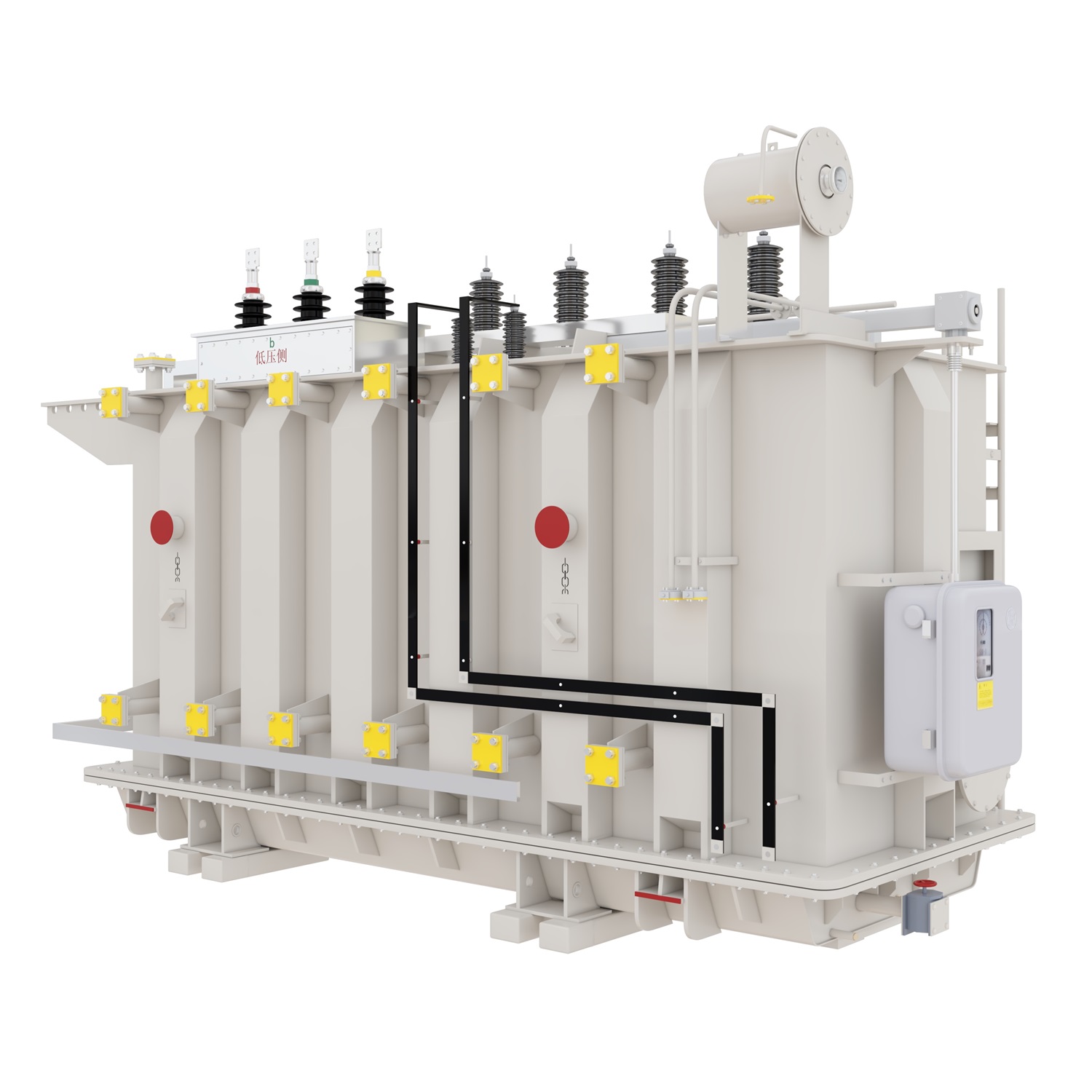

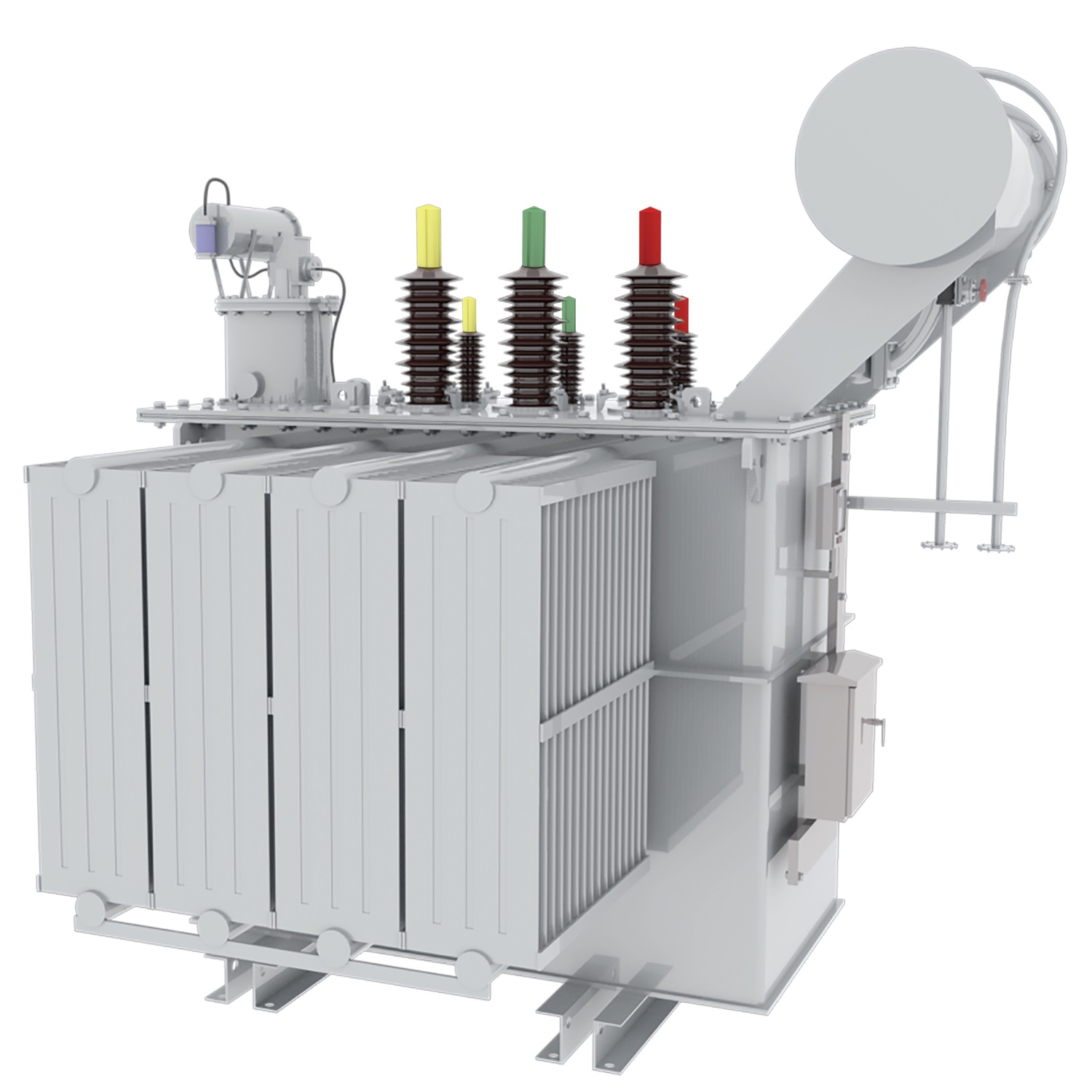

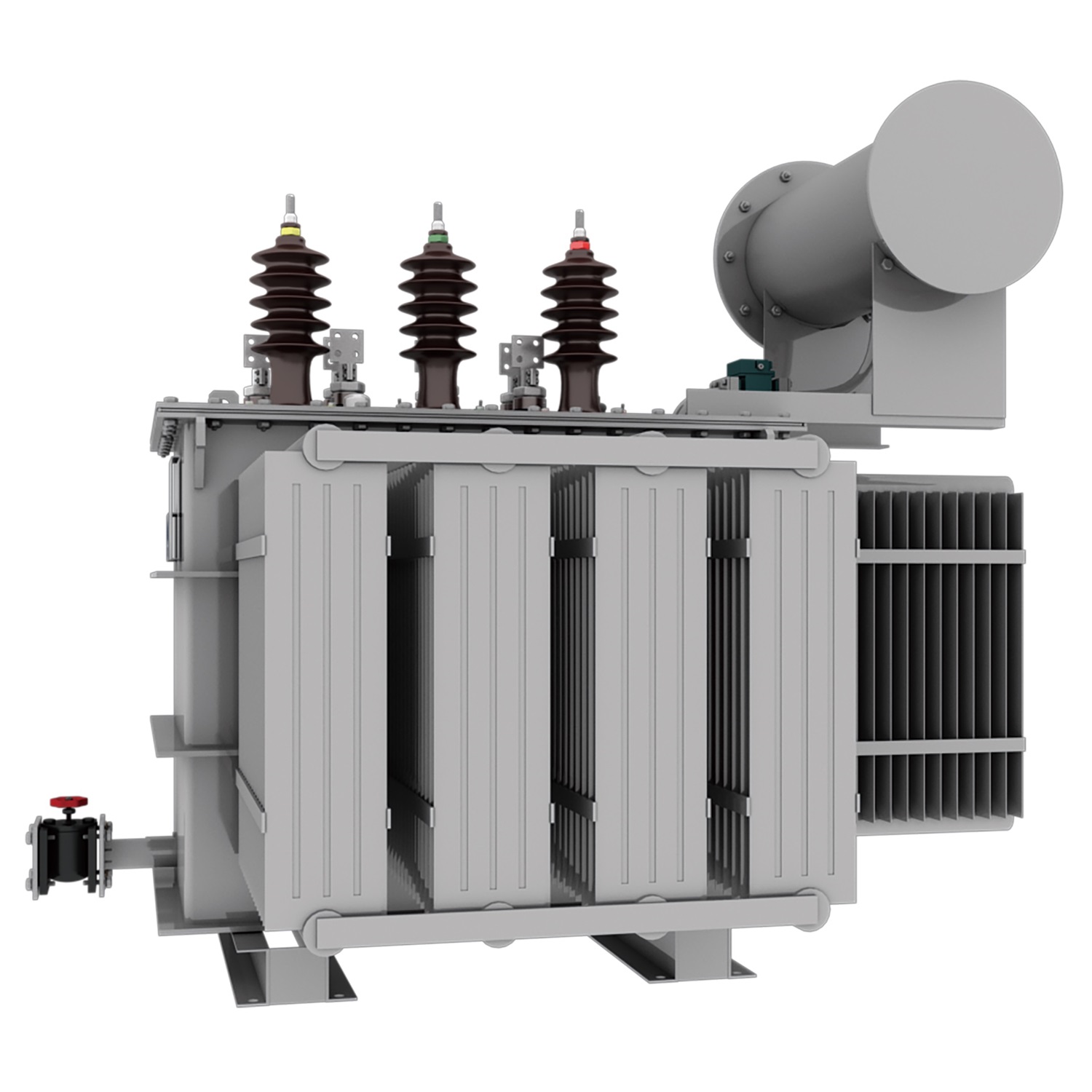

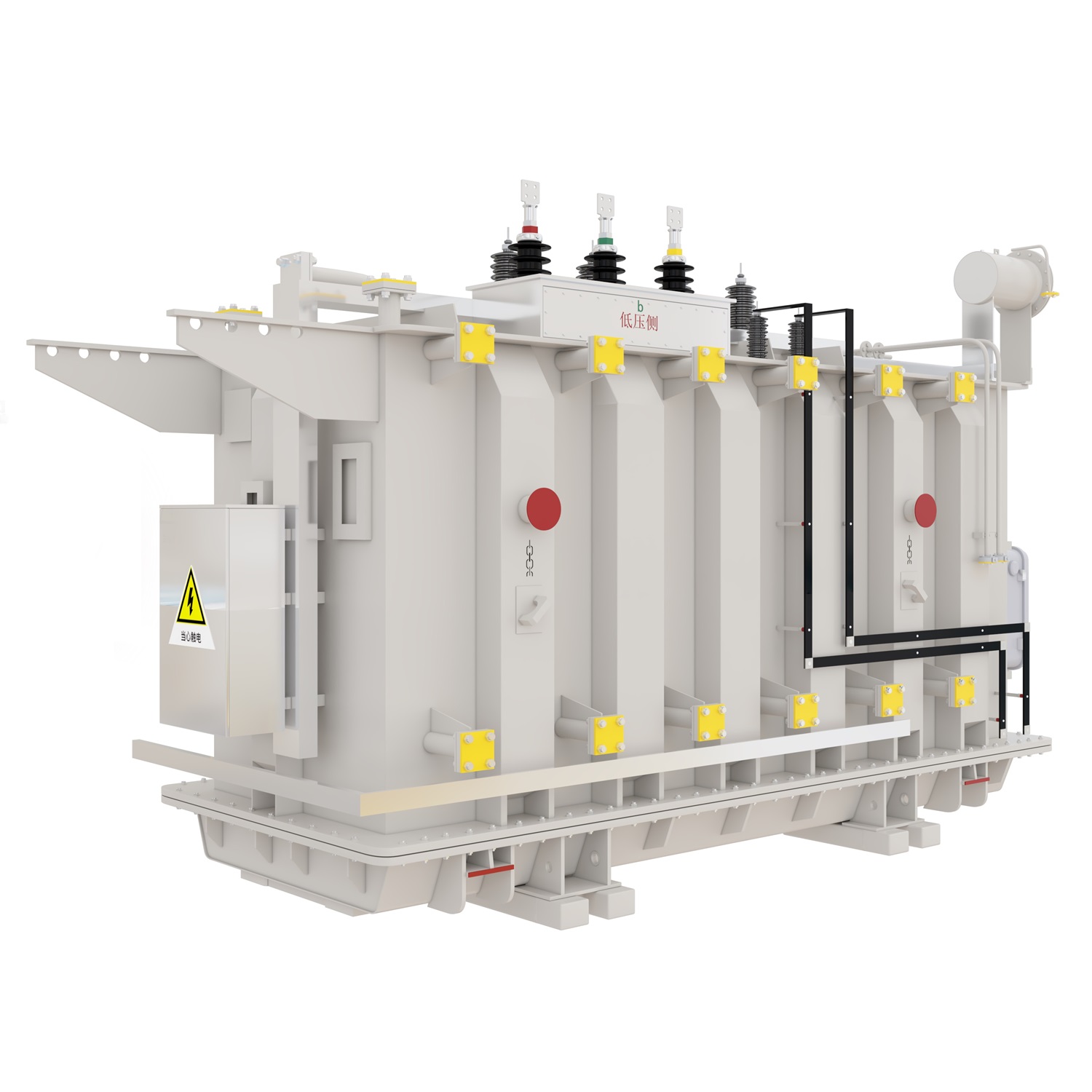

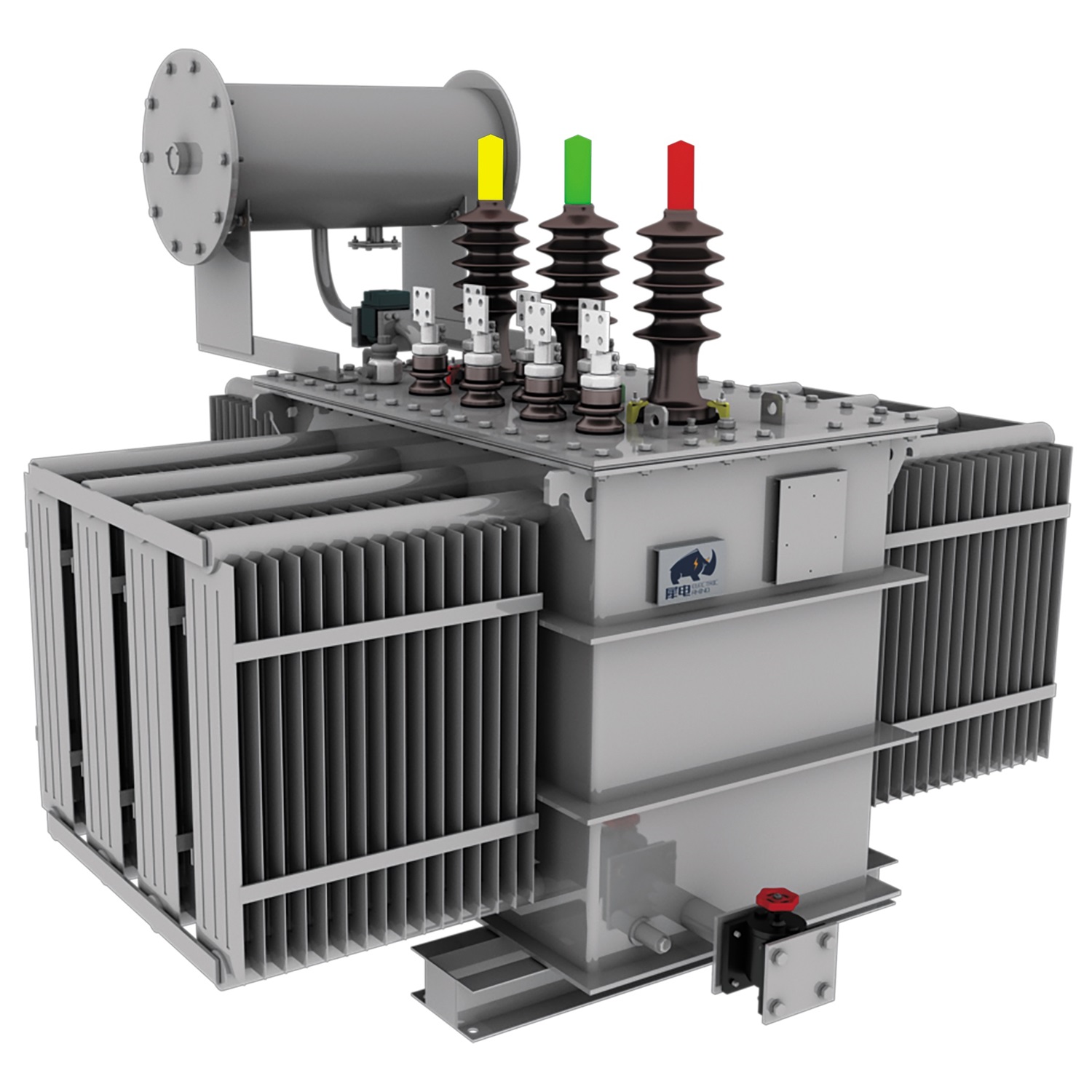

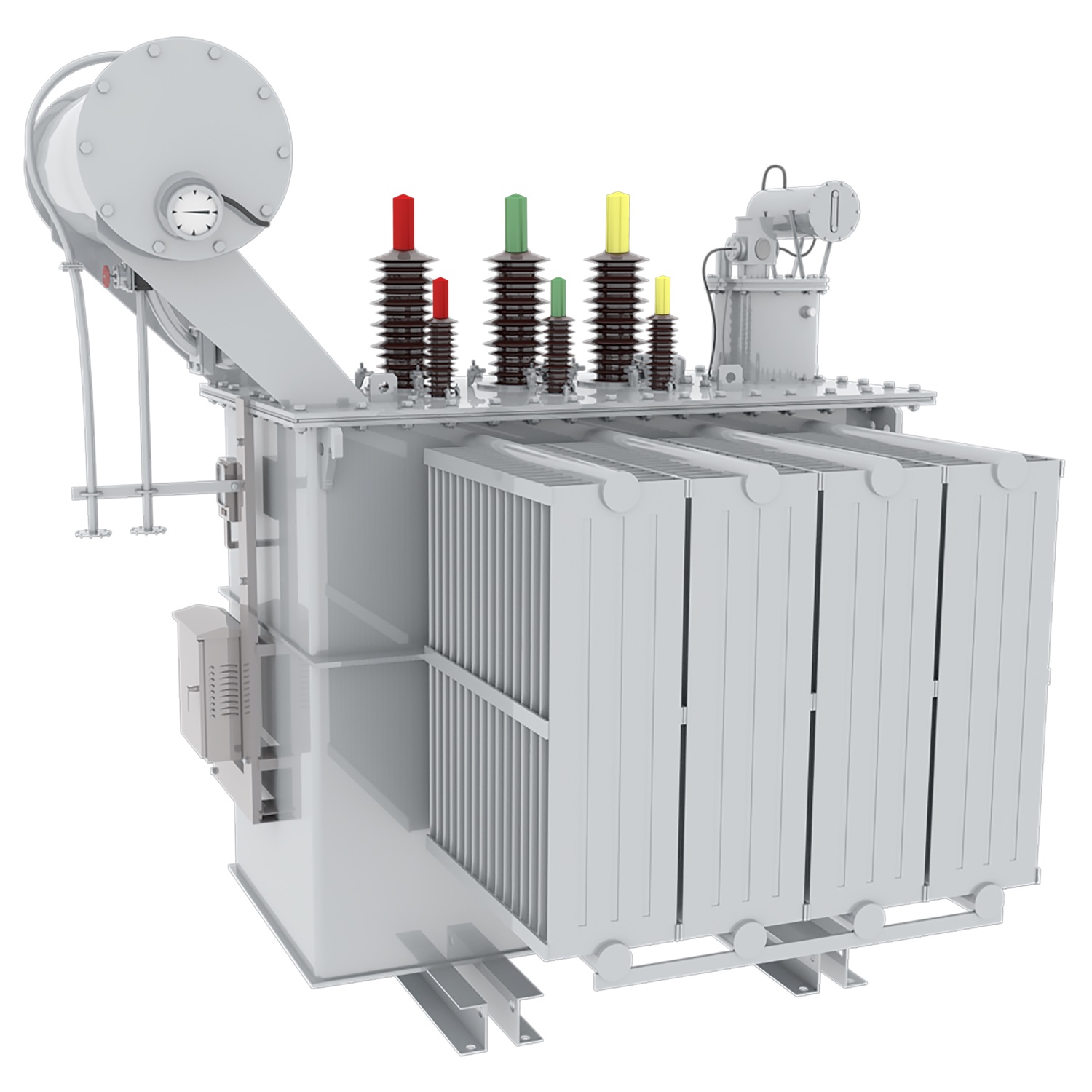

The 35KV power transformer is relatively advanced in design. Based on traditional drawings, it has undergone substantial improvements and enhancements in materials, structure and technology. It has strong short-circuit resistance, beautiful appearance, reliable operation, low loss and low noise, reaching the advanced level of similar products at home and abroad.
| Model number | Capacity (KVA) | Voltage combination(KV) | Connecttion group | No-load loss (W) | Load loss (W) | No-load electricity (%) | Short circuit resistance (%) | ||
| High voltage | Tap range | Low Voltage | |||||||
| S-630 | 630 | 35 | ±5% or ±2×2.5% | 3.15 6.3 10.5 | yd11 | 580 | 7860 | 0.65 | 6.5 |
| S-800 | 800 | 690 | 9400 | 0.65 | 6.5 | ||||
| S-1000 | 1000 | 810 | 11500 | 0.65 | 6.5 | ||||
| S-1250 | 1250 | 980 | 13900 | 0.55 | 6.5 | ||||
| S-1600 | 1600 | 1180 | 16600 | 0.45 | 6.5 | ||||
| S-2000 | 2000 | 1520 | 18300 | 0.45 | 5.5 | ||||
| S-2500 | 2500 | 1790 | 19600 | 0.45 | 6.5 | ||||
| S-3150 | 3150 | 35 38.5 | ±5% or ±2×2.5% | 3.15 6.3 10.5 | 2130 | 23000 | 0.45 | 7 | |
| S-4000 | 4000 | 2530 | 27300 | 0.45 | 7 | ||||
| S-5000 | 5000 | 3020 | 31300 | 0.45 | 7 | ||||
| S-6300 | 6300 | 3670 | 35000 | 0.45 | 8 | ||||
| S-8000 | 8000 | 35 38.5 | ±5% or ±2×2.5% | 3.15 3.3 6.3 6.6 10.5 | ynd11 | 5040 | 38400 | 0.35 | 8 |
| S-10000 | 10000 | 6090 | 45300 | 0.35 | 8 | ||||
| S-12500 | 12500 | 7000 | 53800 | 0.30 | 8 | ||||
| S-16000 | 16000 | 8470 | 65800 | 0.30 | 8 | ||||
| S-20000 | 20000 | 10080 | 79500 | 0.30 | 8 | ||||
| S-25000 | 25000 | 11900 | 94000 | 0.25 | 10 | ||||
| S-31500 | 31500 | 14140 | 112000 | 0.25 | 10 | ||||
